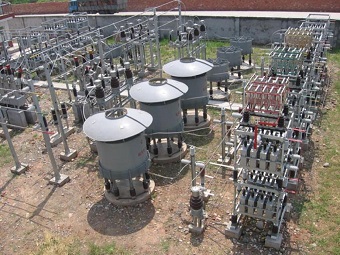

FC high-voltage filtering and compensation complete set

The loads in the steel, petrochemical, metallurgy, coal and other industries generate a large number of harmonics during the work process, causing serious pollution to the power system and affecting the quality of power supply and consumption. The passive power filter device absorbs the harmonic current generated by the harmonic source nearby, which is effective measure to suppress the harmonic pollution.

The passive power filter device is mainly composed of filter capacitor, air-core filter reactor and  non-inductive resistor. It is connected in parallel with the harmonic source during operation to play filtering role and take into account the needs of reactive power compensation and voltage regulation.

Features:
 Complete set: including power distribution cabinets, relay protection screens, primary components, steel frames and fences, etc.

Miniaturization: compact structure, reasonable layout, simple and intuitive installation, operation and maintenance

 Flexibility: It can meet the different requirements of industrial loads for power quality.

 Adaptability: reliable operation under different climatic conditions.

Application fields

 High-power rectifier devices: such as electrolytic aluminum, intermediate frequency furnace, rolling mill, electric locomotive, etc.
