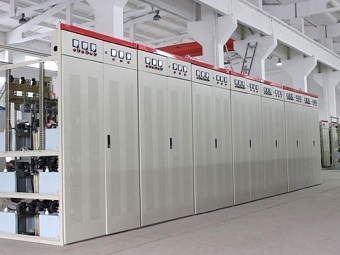

DW short network compensation device

Application field: Reactive power compensation for high reactive power equipment such as submerged arc furnaces and calcium carbide furnaces.

Submerged arc furnace is industrial ore furnace mainly used for reducing smelting ore, carbonaceous reducing agent and solvent and other raw materials and producing ferrosilicon, ferromanganese, ferrochrome and other ferroalloys. Submerged arc furnace not only has high reactive power loss, low power factor, serious harmonic pollution, but also three-phase load imbalance, which seriously affects the quality of power supply and reduces the economic benefits of enterprises. Therefore, filfilter compensation must be applied for the device.

Compared with high-voltage filter compensation, the low-voltage short-network filter compensation device for submerged arc furnace can not only improve the power factor (meet the evaluation index of the power department), and because the compensation point is moved forward to the low-voltage side of the transformer, the reactive power consumption of the transformer and the short-circuit has been improved, the three-phase power balance can be adjusted, the voltage can be stabilized, and it has the obvious function of increasing production and saving electricity.

Features

 （1） low voltage , large current , large installation capacity

 （2）The harmonic current is large during operation, and the inrush current is too large during switching, which is not suitable for frequent switching

 （3）The environment is bad (high temperature, dust, etc.)

（4）Using split-phase compensation to improve the three-phase imbalance
