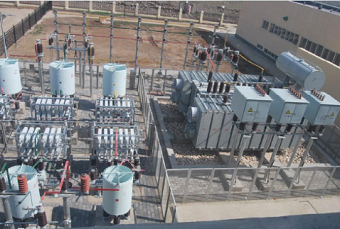

MCR type SVC device

MCR (Magnetic-valve Controllable Reactor) type SVC complete set adopts self-coupling DC excitation and limiting magnetic saturation work mode, which not only greatly reduces the generated harmonics, but also has low active power loss and fast response speed. By changing the trigger angle of the thyristor in the MCR excitation system, the magnetic flux saturation degree of the magnetic reactor core can be changed to change the reactive capacity output of the magnetic control reactor

Application field

①Long-distance power transmission

②Coal mine

③Wind facility booster station

④Electric arc furnace

⑤Rolling mill

⑥Electric locomotive power supply
